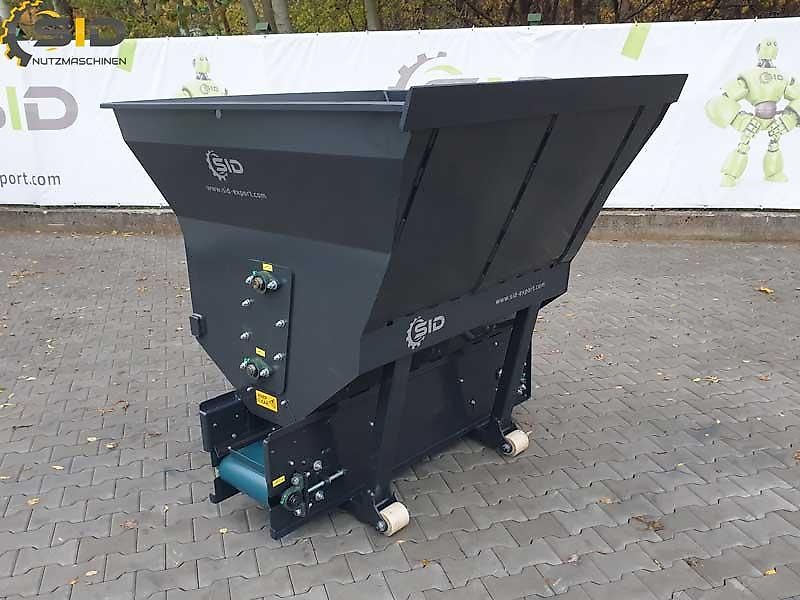

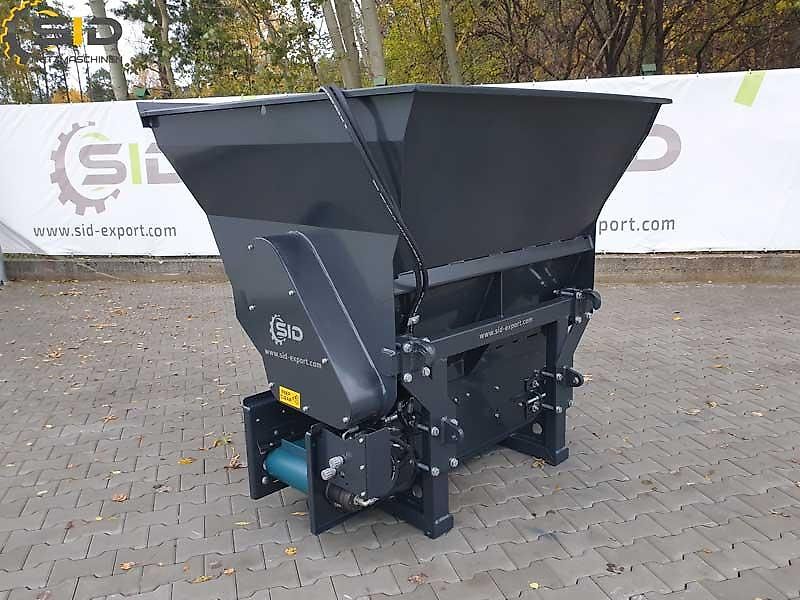

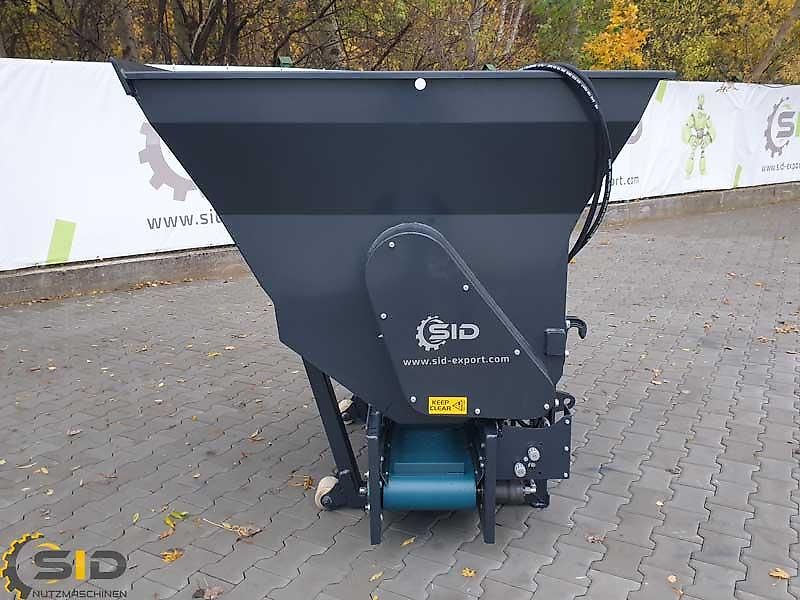

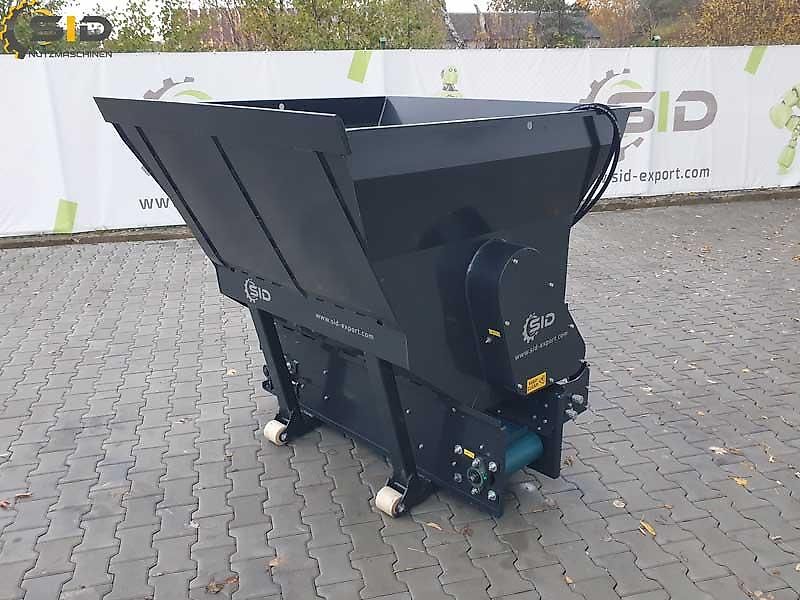

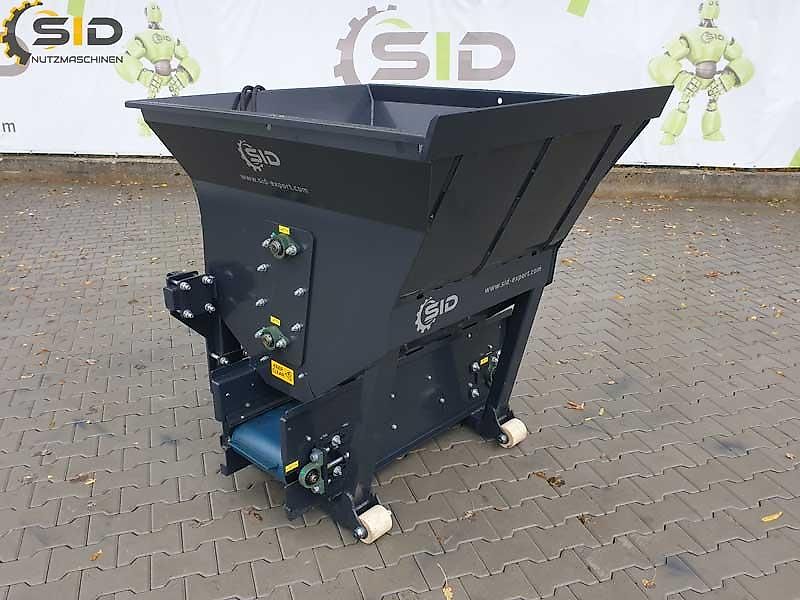

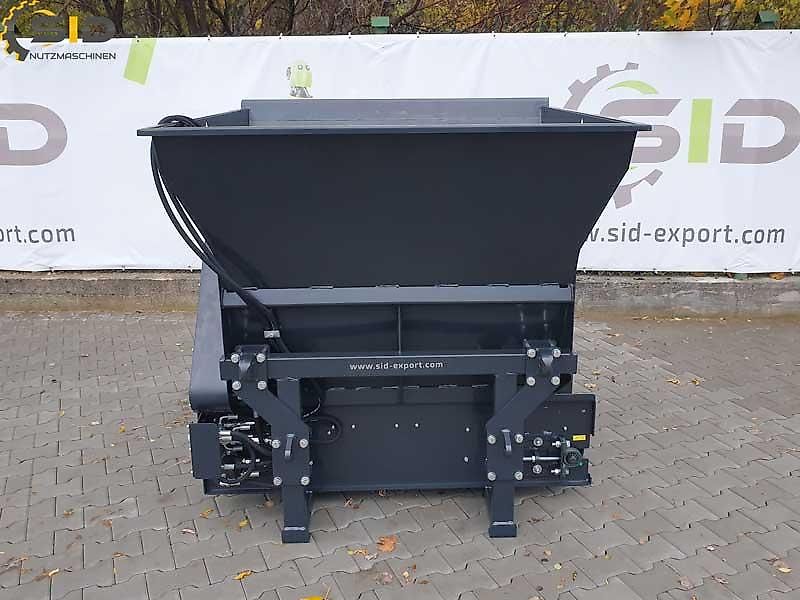

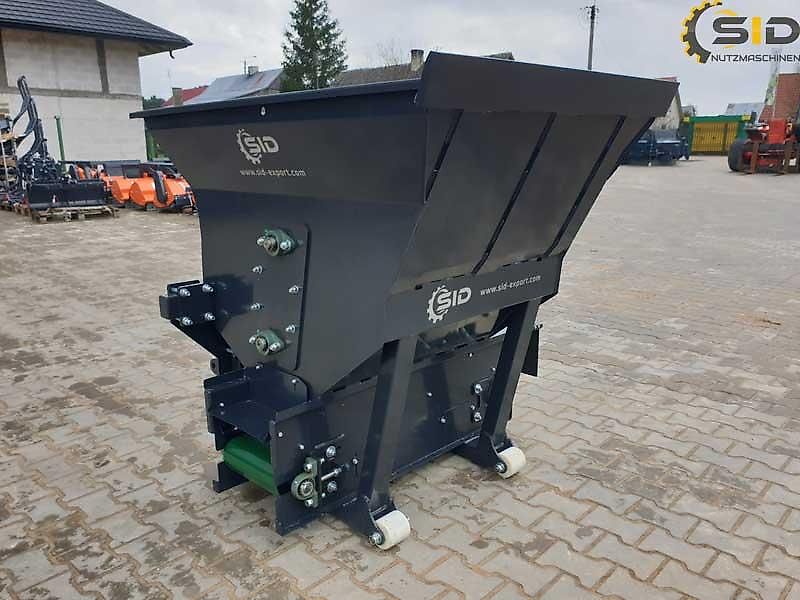

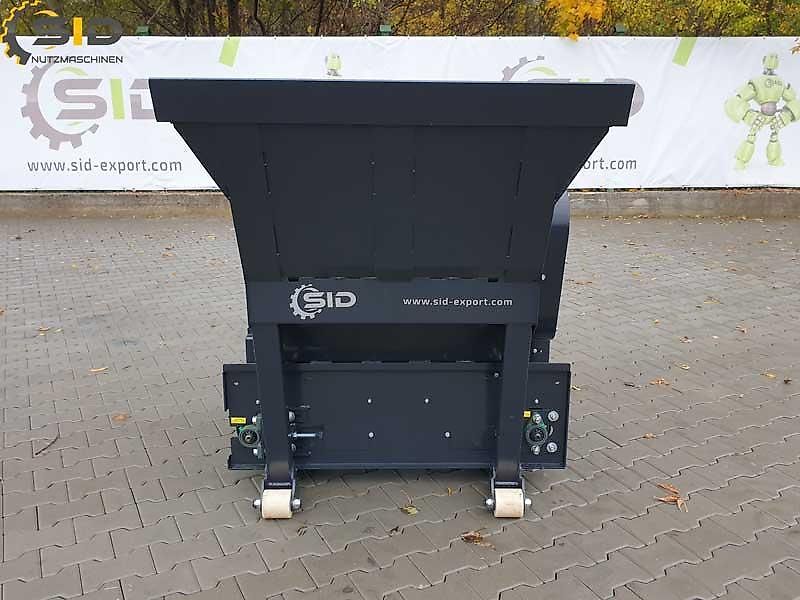

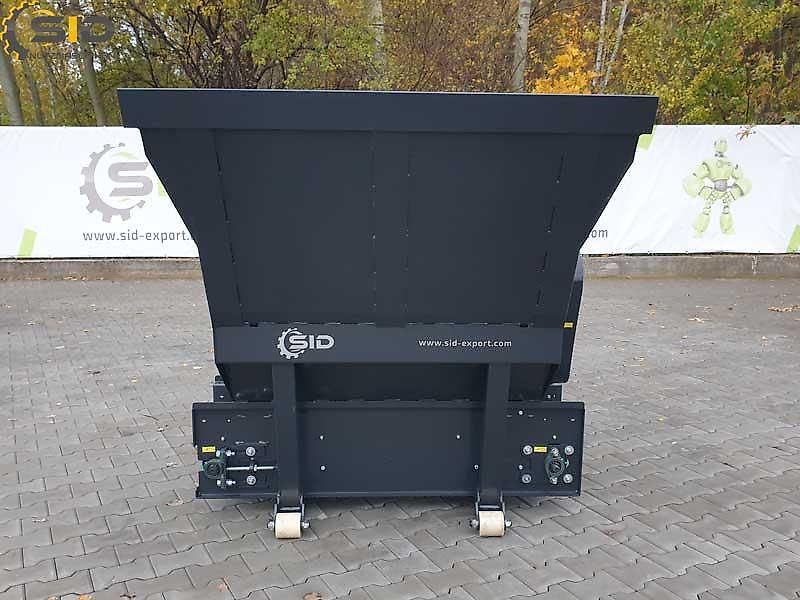

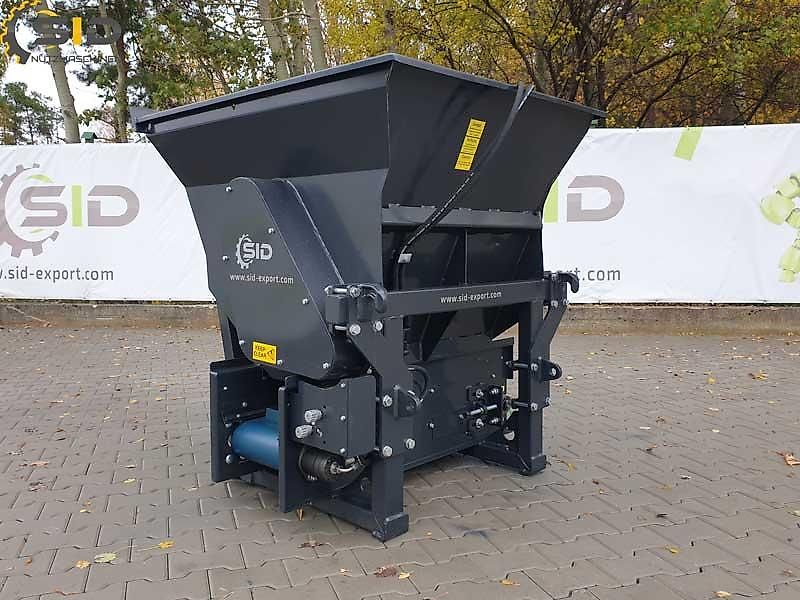

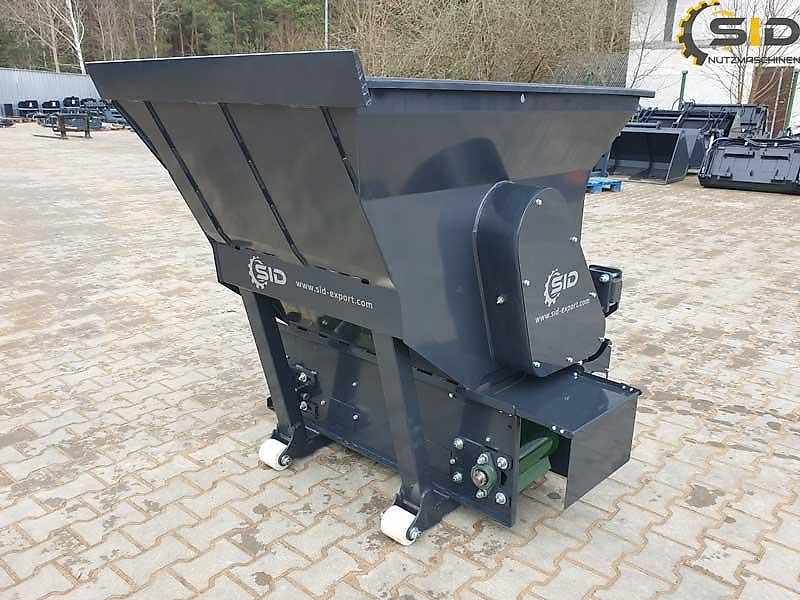

SID Einstreugerät / Futterverteiler 1,40m3/ Dosing bucket with conveyor belt

Further Descriptions

Einstreugerät / Futterverteiler für Stroh bis 6cm, Sägespänne und andere leichte Materialen.
- Auswurfweite 0,1-5m
- Bandbreite 30 cm

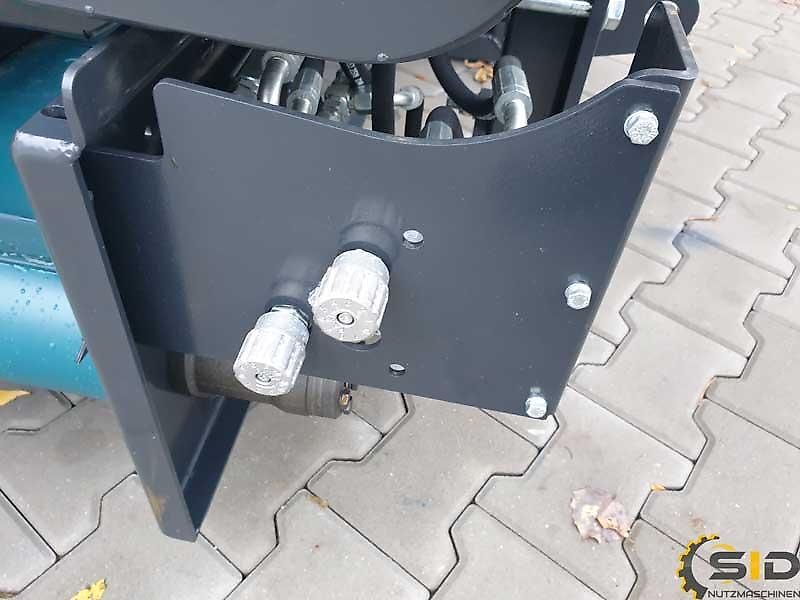

- Unabhängige Band und Wellenregulierung
- Zerrreiswelle mit 20 cm langen Messer
- Wellengeschwindig 1:2
- Hardoxschürfleiste 400HB 110x12mm
- Erforderliche Ölförderleistung 50 -100 l/min
- Hoflader-Teleskoplader-Radlader-Frontladeraufnahme

Standard
Höhe - 1520mm
Länge - 1540mm

1200 mm 1,30m3 470 kg 4 000 €
1550 mm 1,70m3 500 kg 4 165 €
1800 mm 2,00m3 550 kg 4 575 €
2200 mm 2,15m3 600 kg 4 810 €

Für Minilader
Höhe - 1380mm
Länge - 1420mm

1200 mm 1,00 m3 430 kg 3 590 €
1550 mm 1,40m3 480 kg 4 000 €

Volumen - Modell
Höhe - 1720mm
Länge - 1800mm

1800 mm 2,60m3 730 kg 5 335 €

Auf Zuschlag
Begrenzer 1 - ermöglicht es, die Menge an verschüttetem Material zu reduzieren, wir empfehlen es mit sehr lockerem Material zu verwenden 65 € (Seitlich)
Begrenzer 2 - reduziert die Wurfweite 50 € (Seitlich)
Alle Preise sind netto

WARENLIEFERUNG AUS POLEN

NETTO EINKAUF MIT UST.IdNr. (Internationalemsteuernummer bzw.
Umsatzsteuer-Identifikationsnummer) möglich.

Im Standard ist Euroaufnahme, auf Kundenwunsch kann mit einen anderen ausgestattet werden.
_________________________________________________________________________

The dosing spoon with belt is ideal, in particular, in cattle and poultry farming, as well as in gardening.

The dosing bucket with the belt is equipped with two rollers inside the container, which dispense the material to the unloading belt very well. A well-designed structure in terms of strength and weight of the device ensures long-term use. Chopped straw, sand or sawdust can be used for mulching cattle stands and henhouses. In gardening, it is possible to make ballast with sawdust or wood chips, as well as spread compost. The container has a specially designed shape, thanks to which the material collected and dispensed does not hang.

Advantages:
Thanks to the reinforced steel construction, the bucket is strong and light.
Easy and safe operation.
Versatility: designed for dry forage 6cm, maize and cut grass 6cm.
Fast and precise mixing and discharging.

Description:
The device has a bucket structure, in which the front part is finished with a blade, made of Hardox wear-resistant steel, moved forward for better and more complete filling.
The possibility of adjusting the speed of the dosing belt, which allows us to feed not only loose feed, but also maize silage.

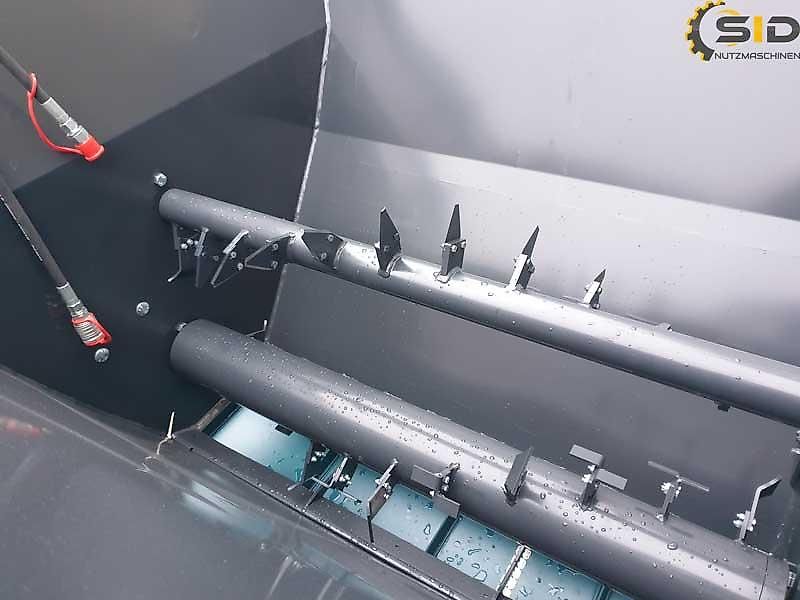

Inside, there are two 250 mm rolls with spikes for mixing and dosing the material.

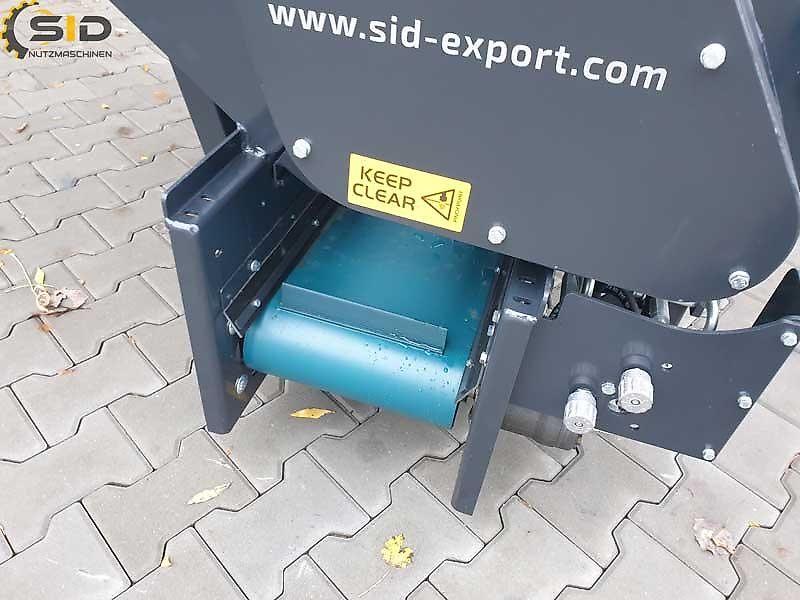

At the bottom of the bucket, a belt dispenser with drivers is installed for better litter discharge and even spreading on the ground.
An additional roller installed at the bottom of the bucket makes it easier to fill with smaller machines.
The whole is hydraulically driven from one section, demand min 30L / min, max70l / min

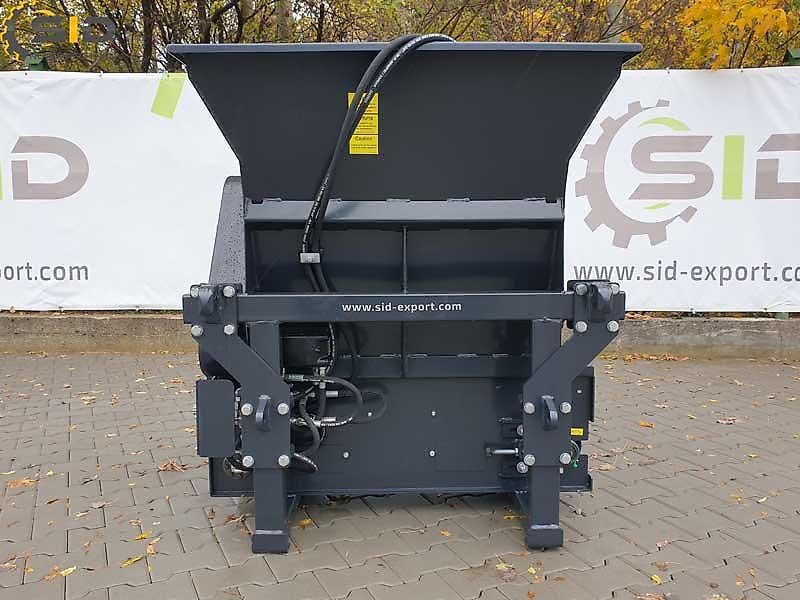

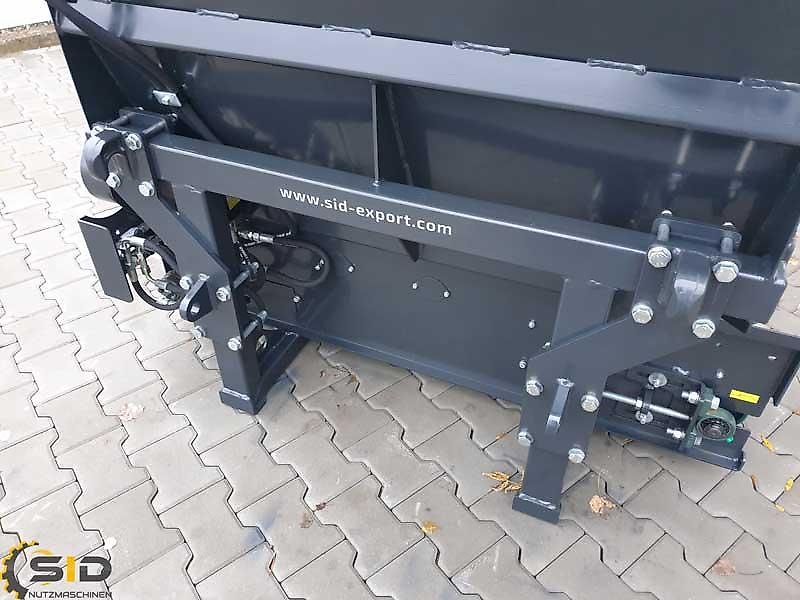

The screw-on attachment ensures quick replacement without cutting or welding.
330 bar cables as standard.
It is possible to manufacture a belt spreader with dimensions according to customer needs.
Any mounting according to customer specifications.
Warranty 12 months.

Mini
Width / Volume / Weight / Price
1200 mm 1,00 m3 430 kg 3 560 €
1550 mm 1,40m3 480 kg 4 000 €

Universal
Width / Volume / Weight / Price
1200 mm 1,30m3 470 kg 3 590 €
1550 mm 1,70m3 500 kg 4 165 €
1800 mm 2,00m3 550 kg 4 575 €
2200 mm 2,15m3 600 kg 4 810 €

Maxi
Width /Volume/ Weight / Price
1800 mm 2,60m3 730 kg 5 335 €

DELIVERY FROM POLAND
